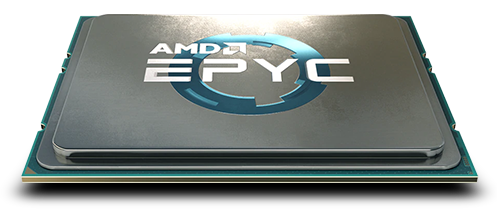

AMD EPYC™ Server Platforms

AMD EPYC Server Platforms built for the most demanding multi tasking



AMD EPYC Platforms

Since its initial release in 2017 AMD has continued to develop new versions of its EPYC server CPUs. Currently there are three main versions of EPYC available, the high performance 4th gen EPYC 9004- and 8004-series based on the Zen 4 / Zen 4c architecture, the mainstream 3rd gen EPYC 7003 based on the Zen 3 architecture and value-orientated 4th gen EPYC 4004 based on the Zen 4 architecture. Click on the tabs below to find out more.

AMD EPYC 9004 Platform

Raising the bar yet again for workload performance, AMD 4th gen EPYC processors powered by the Zen 4 architecture help IT professionals excel. Performance and efficiency are the key metrics for success in IT. Servers powered by EPYC 9004 CPUs deliver faster time to results, helping provide more and smarter insights for decision making, driving better business outcomes. AMD EPYC 9004 CPUs – performant, efficient, on time.

VIEW SOLUTIONS

AMD Zen 4 Architecture

Cores
Up to 128 cores per socket

I/O
128 lanes of PCIe 5.0 for GPUs, SmartNICs, DPUs & NVMe SSDs

Memory
Support for up to 6TB of 12-channel DDR5

AMD EPYC 9004 Lineup

AMD EPYC 9004

Designed for dual-socket servers for everyday workloads

Cores: up to 96
Level 3 Cache: up to 384MB
I/O: 128 PCIe 5.0, 12 PCIe 3.0
Memory: 6TB 12-channel DDR5
TDP: 200-400W
Architecture: Zen 4, Genoa

AMD EPYC 9004F

Designed for dual-socket servers for frequency-sensitive workloads

Cores: up to 48
Level 3 Cache: 256MB
I/O: 128 PCIe 5.0, 12 PCIe 3.0
Memory: 6TB 12-channel DDR5
TDP: 320-360W
Architecture: Zen 4, Genoa

AMD EPYC 9004P

Designed for single-socket servers for everyday workloads

Cores: up to 96
Level 3 Cache: up to 384MB
I/O: 128 PCIe 5.0, 12 PCIe 3.0
Memory: 6TB 12-channel DDR5
TDP: 240-400W
Architecture: Zen 4, Genoa

AMD EPYC 9004X

Designed for dual-socket servers for HPC and scientific computing workloads

Cores: up to 96
Level 3 Cache: up to 1152MB
I/O: 128 PCIe 5.0, 12 PCIe 3.0
Memory: 6TB 12-channel DDR5
TDP: 320-400W
Architecture: Zen 4, Genoa-X

AMD EPYC 9704

Designed for high density dual-socket servers running cloud native workloads

Cores: up to 128
Level 3 Cache: up to 256MB
I/O: 128 PCIe 5.0, 12 PCIe 3.0
Memory: 6TB 12-channel DDR5
TDP: 340-360W
Architecture: Zen 4c, Bergamo

AMD EPYC 9004 Features and Benefits

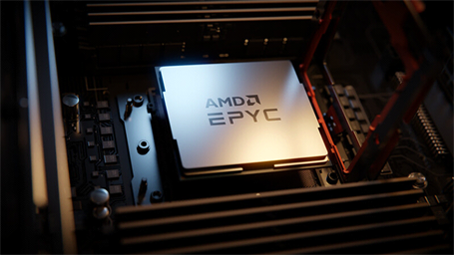

The dawn of a new era

AMD EPYC 9004 CPUs mark a new chapter in the EPYC story, with a new SP5 socket enabling support for a host of platform improvements. Leadership memory bandwidth and capacity is provided by support for 12-channels of 12TB of DDR5 memory. In addition the I/O has been upgraded to 128 lanes of PCIe 5.0, providing double the bandwidth of PCIe 4.0. Finally, switching to a new 5nm manufacturing process enables the core count to be increased from 64 to an unparalleled 128 cores. All this at the same time as providing excellent Infinity Guard cybersecurity features built into the hardware.

Expanded instruction set

The instruction set of AMD EPYC 9004 CPUs has been expanded, adding in native support for AVX-512, VNNI (Vector Neural Network Instructions) and BFLOAT16 (Brain Floating Point 16-bit) to accelerate the most demanding HPC, deep learning and AI workloads.

Leadership performance



1. Top of stack compare between AMD 96c EPYC 9654 and 64c 7763 CPUs SPECrate©2017_fp_base scores.

2. Top of stack compare between AMD 96c EPYC 9654 and Intel 40c Platinum 8380 SPECrate2017_int_base scores.

Expandable memory

In addition to the 12TB of DDR5 DRAM AMD EPYC 9004 CPUs also support Type 3 Memory Expansion modules using the CXL 1.1 protocol. CXL (Compute Express Link) is an open standard for CPU to CPU and CPU to memory connections using the same physical slots as the PCIe. The AMD EPYC 9004 platform supports CXL-compatible memory modules in two modes, memory expansion to boost bandwidth and capacity or memory pooling.

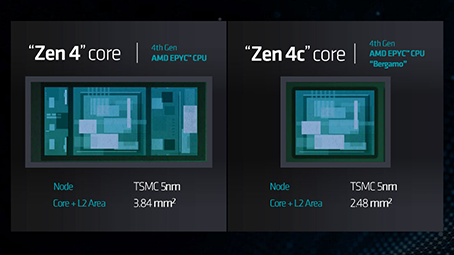

AMD Zen 4c Cores

The AMD EPYC 9704 CPUs are based on new Zen 4c architecture. These have the same overall capabilities as standard Zen 4 cores used in other EPYC 9004 CPUs but have a higher-density design, providing up to 128 cores per socket, versus the standard 96. This makes EPYC 9704 CPUs ideally suited for cloud native applications where power-efficiency and compute-density are key.

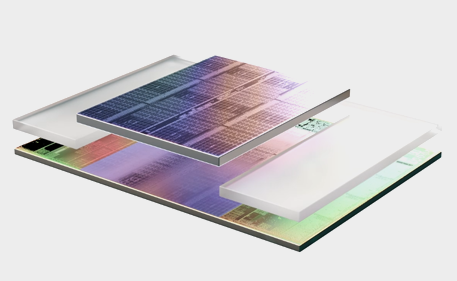

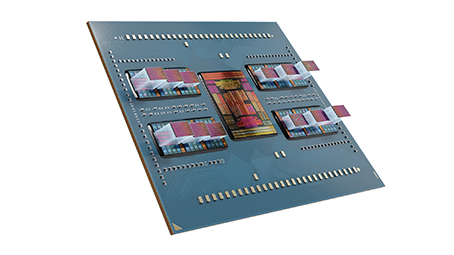

AMD 3D V-Cache

Special edition AMD EPYC 9004X CPUs feature an additional 768MB of 3D V-Cache to accelerate technical computing workflows such as structural analysis and computational fluid dynamics by up to 96%. 3D V-Cache is a separate die vertically stacked on top of the CPU die above where the existing Level 3 cache is located and connected via a bi-directional ringbus.

View security features of AMD EPYC

3XS Systems Server Solutions

As an AMD Elite partner Scan has developed a range of server solutions powered by the AMD EPYC platform. Built by our award-winning in-house 3XS Systems division these solutions are optimised for a wide variety of workflows.

IT Infrastructure

VIEW SERVERS >

High density CPU

VIEW SERVERS >

Deep Learning & AI

VIEW SERVERS >

HPC & Rendering

VIEW SERVERS >

AMD EPYC 8004 Platform

AMD EPYC 8004 processors complement the AMD EPYC 9004-series, bringing the established high-efficiency Zen 4c core architecture into lower core count CPUs with much lower TDP ranges and cooling requirements. The processors are designed to work within a wide temperature range, so servers can operate at room temperature and can run quietly thanks to less need for high-speed cooling fans.

VIEW SOLUTIONS

AMD Zen 4c Architecture

Cores
Up to 64 cores per socket

I/O
96 lanes of PCIe 5.0 for GPUs, SmartNICs, DPUs & NVMe SSDs

Memory
Support for up to 6TB of 6-channel DDR5

AMD EPYC 8004 Lineup

AMD EPYC 8004P

Designed for single-socket servers for telco, networking, and edge workloads

Cores: up to 64
Level 3 Cache: up to 128MB
I/O: 96 PCIe 5.0, 12 PCIe 3.0
Memory: 6TB 6-channel DDR5
TDP: 70-225W
Architecture: Zen 4c, Siena

AMD EPYC 8004PN

Designed for single-socket servers with NEBS (Network Equipment Building System) long life support

Cores: up to 64
Level 3 Cache: up to 128MB
I/O: 96 PCIe 5.0
Memory: 6TB 6-channel DDR5
TDP: 70-225W
Architecture: Zen 4c, Siena

AMD EPYC 8004 Features and Benefits

The dawn of a new high-density era

AMD EPYC 8004-series processors enable platforms for traditional datacentres as well as diverse edge servers and innovative form factors targeted for manufacturing, healthcare, retail and telco. EPYC 8004-series processors are designed for compact, single-socket servers and provide six DDR5 memory channels and 96 lanes of PCIe 5.0. The series delivers from 8 to 64 cores and up to 128MB of L3 cache.

AMD Zen 4c Cores

AMD EPYC 8004 CPUs are based on new Zen 4c architecture. These have the same overall capabilities as standard Zen 4 cores used in the EPYC 9004-series CPUs but have a lower power, higher-density design, providing up to 64 cores per socket. This makes EPYC 8004 CPUs ideally suited for storage and networking applications where power-efficiency is key.

Expandable memory

In addition to the 6TB of DDR5 DRAM, EPYC 8004 CPUs also support Type 3 Memory Expansion modules using the CXL 1.1 protocol. CXL (Compute Express Link) is an open standard for CPU to CPU and CPU to memory connections using the same physical slots as the PCIe. The AMD EPYC 8004 platform supports CXL-compatible memory modules in two modes, memory expansion to boost bandwidth and capacity or memory pooling.

Cutting-edge security

AMD EPYC 8004 CPUs feature Infinity Guard built into the hardware providing Secure Encrypted Virtualization (SEV) to help safeguard VM privacy and integrity; Secure Nested Paging (SEV-SNP) for strong memory integrity protection capabilities; Secure Memory Encryption (SME) to help guard against attacks on system memory and AMD Shadow Stack for hardware-enforced stack protection capabilities against attacks.

View security features of AMD EPYC

3XS Systems Server Solutions

As an AMD Elite partner Scan has developed a range of server solutions powered by the AMD EPYC platform. Built by our award-winning in-house 3XS Systems division these solutions are optimised for a wide variety of workflows.

IT Infrastructure

VIEW SERVERS >

High density CPU

VIEW SERVERS >

Deep Learning & AI

VIEW SERVERS >

HPC & Rendering

VIEW SERVERS >

AMD EPYC 7003 Platform

Built for dependable performance, AMD 3rd gen EPYC processors powered by the Zen 3 architecture deliver IT infrastructure at a lower price point than 4th gen EPYC CPUs. Performance and efficiency are the key metrics for success in IT. Servers powered by EPYC 7003 CPUs deliver rapid results, helping provide more and smarter insights for decision making, driving better business outcomes. AMD EPYC 7003 CPUs – exceptional performance and TCO.

VIEW SOLUTIONS

AMD Zen 3 Architecture

Cores
Up to 64 cores per socket

I/O
128 lanes of PCIe 4.0 for GPUs, SmartNICs, DPUs & NVMe SSDs

Memory
Support for up to 4TB of 8-channel DDR4

AMD EPYC 7003 Lineup

AMD EPYC 7003X

Designed for dual-socket servers for technical computing workloads

Cores: up to 64
Level 3 Cache: 768MB
I/O: 128 PCIe 4.0
Memory: 4TB 8-channel DDR4
TDP: 240-280W
Architecture: Zen 3, Milan

AMD EPYC 7003

Designed for dual-socket servers for everyday workloads

Cores: up to 64
Level 3 Cache: 64-256MB
I/O: 128 PCIe 4.0
Memory: 4TB 8-channel DDR4
TDP: 155-280W
Architecture: Zen 3, Milan

AMD EPYC 7003P

Designed for single-socket servers for everyday workloads

Cores: up to 64
Level 3 Cache: 128-256MB
I/O: 128 PCIe 4.0
Memory: 4TB 8-channel DDR4
TDP: 155-225W
Architecture: Zen 3, Milan

AMD EPYC 7003 Features and Benefits

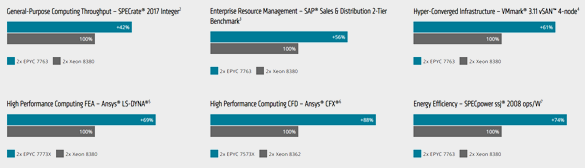

Faster time to results

AMD EPYC 7003 CPUs provide excellent performance across a wide variety of workflows. The range includes 7003X models with an extra-large Level 3 cache for technical computing, 7003 models for everyday workloads and 7003P models for cost-effective single-socket servers.

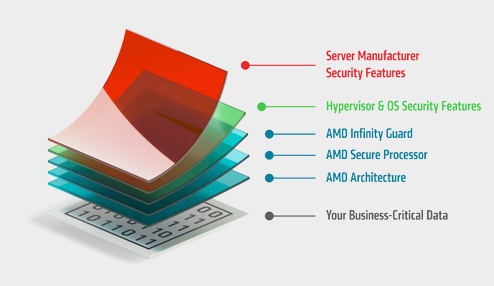

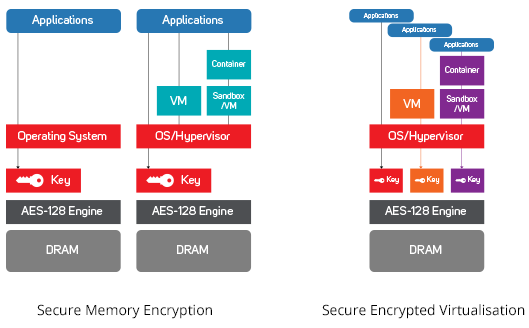

Cutting-edge security

With computer misuse and hacking increasing 160% year on the year in the UK, securing your IT infrastructure and data is more challenging than ever before. AMD EPYC 7003 CPUs feature Infinity Guard built into the hardware providing the following cybersecurity features:

• Secure Encrypted Virtualization (SEV) to help safeguard VM privacy and integrity
• Secure Nested Paging (SEV-SNP) for strong memory integrity protection capabilities
• Secure Memory Encryption (SME) to help guard against attacks on system memory
• AMD Shadow Stack for hardware-enforced stack protection capabilities against attacks

Power efficiency

AMD EPYC 7003 CPUs are made using an advanced 7nm process, helping to drive down power consumption. Combined with higher performance versus the competition, AMD EPYC 7003 CPUs are more power efficient, requiring fewer CPUs and servers to deliver the same workflow.

AMD 3D V-Cache

Special edition AMD EPYC 7003X CPUs feature an 512MB additional 3D V-Cache cache to accelerate technical computing workflows such as structural analysis and computational fluid dynamics by up to 96%. 3D V-Cache is a separate die vertically stacked on top of the CPU die above where the existing Level 3 cache is located and connected via a bi-directional ringbus.

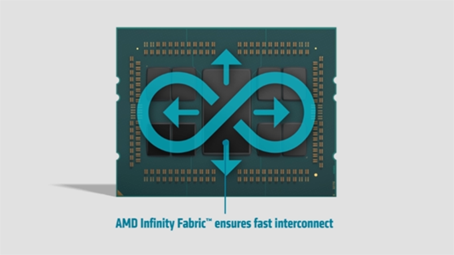

Modular architecture

AMD EPYC 7003 CPUs use a combination of multi-die Zen 3 cores, each effectively its own SoC, connected by the Infinity Fabric bus to deliver scalable performance across a wide range of models optimised for different workflows and budgets.

View security features of AMD EPYC

3XS Systems Server Solutions

As an AMD Elite partner Scan has developed a range of server solutions powered by the AMD EPYC platform. Built by our award-winning in-house 3XS Systems division these solutions are optimised for a wide variety of workflows.

IT Infrastructure

VIEW SERVERS >

High density CPU

VIEW SERVERS >

Deep Learning & AI

VIEW SERVERS >

HPC & Rendering

VIEW SERVERS >

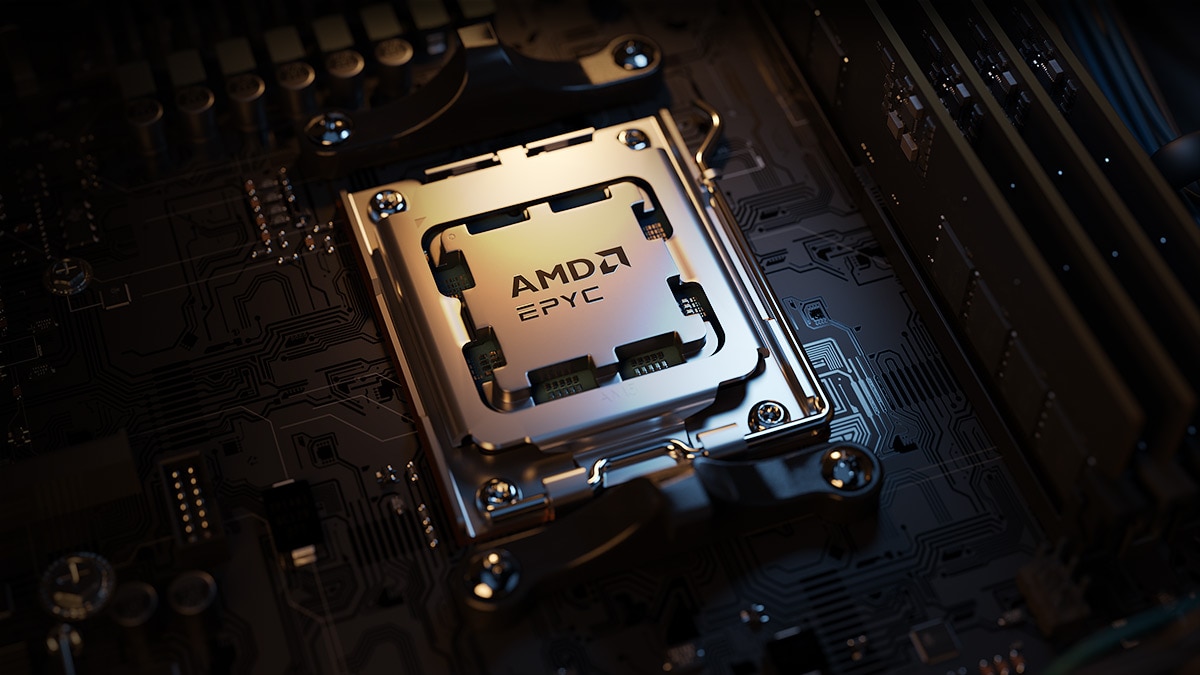

AMD EPYC 4004 Platform

Built for growing businesses, AMD 4th gen EPYC 4004 processors powered by the Zen 4 architecture deliver dependable performance at an attractive price. Performance and efficiency are the key metrics for success in IT. Servers powered by EPYC 4004 CPUs free you from the difficult choice of using PCs as servers or from continuing to run your business on aging technology.

VIEW SOLUTIONS

AMD Zen 4 Architecture

Cores
Up to 16 cores

I/O
28 lanes of PCIe 5.0 for GPUs, NICs and NVMe SSDs

Memory
Support for up to 192GB of dual-channel DDR5

AMD EPYC 4004 Lineup

AMD EPYC 4004P

Designed for single-socket servers for everyday workloads

Cores: up to 16
Level 3 Cache: up to 128MB
I/O: 28 PCIe 5.0
Memory: 192GB dual-channel DDR5
TDP: 65-170W
Architecture: Zen 4, Raphael

AMD EPYC 4004 Features and Benefits

EPYC features at a new price

AMD EPYC 4004 processors enable businesses to take advantage of the many features of EPYC server processors at a more attractive price. These entry-level systems are ideal for small and medium businesses, departmental and branch office servers and hosted IT service providers based on their compelling combination of affordability, performance and ease of management. AMD EPYC 4004 processors deliver strong general-purpose server performance in a streamlined, single-socket package.

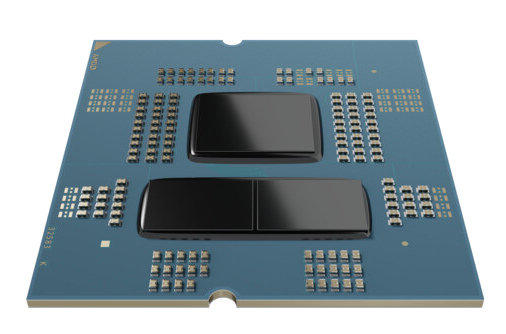

AMD Zen 4 Cores

AMD EPYC 4004 processors are based on the 4th gen Zen CPU architecture combined with the tried and tested AM5 platform. Compared to desktop Ryzen processors, server EPYC 4004 processors support more PCIe lanes for additional devices such as NVMe SSDs and ultra-reliable ECC memory. The latter prevents data corruption and system crashes. For businesses where continuous workloads are mission-critical, even a few hours downtime can cost far more than ECC memory is worth.
