NVIDIA TITAN RTX

NVIDIA® TITAN RTX™ is the fastest PC graphics card ever built. It’s powered by the award-winning Turing™ architecture, bringing 130 Tensor TFLOPs of performance, 576 tensor cores, and 24 GB of ultra-fast GDDR6 memory to your PC.

TITAN RTX Powers AI, Machine Learning, and Creative Workflows

The most demanding users need the best tools. TITAN RTX is built on NVIDIA’s Turing GPU architecture and includes the latest Tensor Core and RT Core technology for accelerating AI and ray tracing. It’s also supported by NVIDIA drivers and SDKs so that developers, researchers, and creators can work faster and deliver better results.

Start AI Development Now

Train AI models faster with 576 NVIDIA Turing mixed-precision Tensor Cores delivering 130 TFLOPS of AI performance. Supported by NVIDIA’s CUDA-X AI SDK, including cuDNN, TensorRT, and more than 15 other libraries. Works with all popular deep learning frameworks and is compatible with NVIDIA GPU Cloud (NGC).

Accelerate Data Science

Work faster with 4608 NVIDIA Turing CUDA cores accelerating end-to-end data science workflows. Process huge data sets with 24 GB GDDR6 memory (or 48 GB with NVLink). Get started today with the RAPIDS suite of libraries for data science, built on NVIDIA’s CUDA-X AI SDK. Develop on your PC and deploy to the data center with ease.

Power Your Creativity

Inspiration doesn’t wait. Build huge immersive worlds and stunning characters, accelerate multi-app workflows, and edit 8K video in real time. 24 GB of memory and 72 Turing RT cores delivering 11 Gigarays per second enable you to take on the most demanding projects.

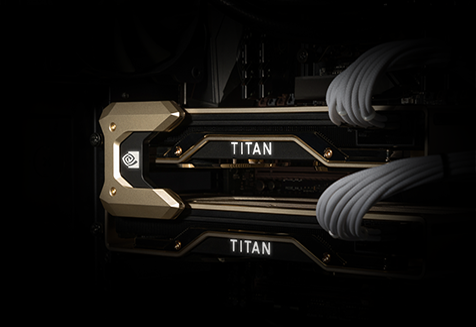

NVIDIA TITAN RTX NVLink Bridge

The TITAN RTX NVLink™ bridge connects two TITAN RTX cards together over a 100 GB/s interface. The result is an effective doubling of memory capacity to 48 GB, so that you can train neural networks faster, process even larger datasets, and work with some of the biggest rendering models.

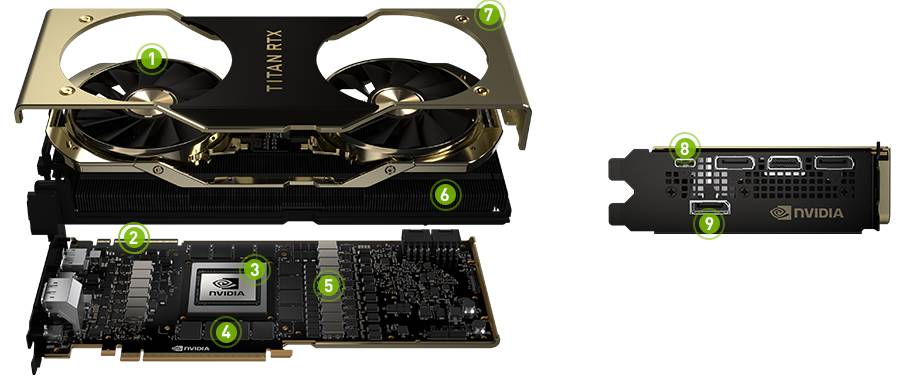

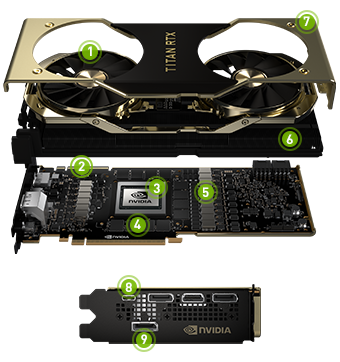

Ultimate Performance In Spectacular Design

TITAN RTX

1. Fan

Dual 13-blade fans produce 3X higher airflow and ultra-quiet acoustics.

2. TITAN RTX NVLink Bridge

Double the effective GPU memory capacity to 48 GB and scale performance with up to 100 GB/s in total bandwidth of data transfer utilizing the NVIDIA NVLink™ technology.

3. NVIDIA Turing GPU

TITAN RTX accelerates photorealistic ray tracing with 72 RT Cores, AI workflows with 576 Tensor Cores, and parallel computing with 4608 NVIDIA CUDA® cores for developers, researchers, creators, and enthusiasts.

GDDR6 Memory

24 GB of ultra-fast GDDR6 memory provides up to 672 GB/s of memory bandwidth for greater throughput and to handle larger datasets.

5. Power Supply

The all new 13-phase iMON DrMOS power supply delivers more headroom and sub-millisecond power management for maximum overclocking.

6. Vapour Chamber

This full-card vapor chamber is 2X larger to maximize heat spreading and heat transfer to the finstack.

7. Cover

A forged and machine-finished diecast aluminium cover with diamond-cut edge detailing provides a rigid, lightweight frame for an open design with beautifully smooth, continuous curves.

8. VirtualLink

The VirtualLink™* connector simplifies connectivity by meeting the power, display, and bandwidth demands of the next-gen HMD devices to support more immersive experiences.

Disclaimer: *In preparation for the emerging VirtualLink standard, Turing GPUs have implemented hardware support according to the “VirtualLink Advance Overview”. To learn more visit http://www.virtuallink.org

9. DisplayPort 1.4 8K 60 Hz

Drive ultra-high resolutions of up to 8K 60 Hz from a single link.

Revolutionary Performance, Powered by Turing

TITAN RTX trains advanced models like ResNet-50 and GNMT up to 4X faster than Titan Xp. And RAPIDS trains models up to 3X faster than CPUs. Built with multi-precision Turing Tensor Cores, TITAN RTX delivers breakthrough performance from FP32, FP16, INT8, and INT4, allowing faster training and inferencing of neural networks. Equipped with twice the memory capacity of previous-generation TITAN GPUs and NVIDIA NVLink™, TITAN RTX enables researchers and data scientists to experiment with larger neural networks and datasets than ever before, all on GPU memory.

TITAN RTX is 4X Faster Than TITAN XP for Deep Learning Training

TITAN RTX

Tackle the Most Demanding Creative Workloads

With 72 Turing RT Cores and 24 GB of memory, TITAN RTX renders extra-large models, supports real-time 8K video editing, and runs complex, multi-application workflows to enable a smooth and seamless experience.

TITAN RTX

NVIDIA TITAN RTX for Demanding Creative Workflows

PLAY VIDEO

Specifications

Architecture NVIDIA Turing
Frame Buffer 24GB GDDR6
Boost Clock 1770 MHz
Tensor Cores 576
CUDA Cores 4608
