Graphics Workstations for Maya

Understand Maya’s hardware requirements and pick the perfect 3XS Systems graphics workstation for your project

What is Maya?

Maya is a Digital Content Creation (DCC) 3D visual effects software package with powerful character creation, rigging, animation, and simulation tools. Maya is used in the development of video games, 3D applications, animated films, TV series and other visual effects.

What makes the best workstation for Maya?

There is no one ideal system configuration for Maya, as users will make different use of software - however, most systems will fall into one of two scenarios. The most common scenario is an all- purpose workstation that will be used to create and render a scene from start to finish, in which case you need to carefully balance the two most important components, the CPU and one or two GPUs in order to get good responsive content creation and rapid rendering.

Moving up from this is an organisation that requires faster rendering, such as a dedicated system in the corner of the office or a workstation that will left on overnight rendering. In this scenario a workstation with a single CPU and up to four GPUs will provide much faster rendering while still retaining the ability to create models and animations.

What CPU should I choose for Maya?

As explained above, a system that will be used for a mixture of content creation and rendering needs to strike a good balance between CPU and GPU(s). Like most DCC applications Maya performs best on a CPU with a high frequency and around eight cores, although more cores can be beneficial in some processes. We recommend starting with an AMD Ryzen 7 or Intel Core Ultra 7, upgrading to Ryzen 9 or Core Ultra 9 if budget allows. If you’re also going to doing heavy renders then an AMD Ryzen Threadripper PRO or Intel Xeon W is a good choice as these have more PCIe lanes, enabling the system to support multiple GPUs.

What GPU do I need for Maya?

A fast GPU is crucial for a responsive DCC experience in Maya, with more powerful models providing a more noticeable benefit when working with complex 3D models and high resolution textures. We recommend the NVIDIA RTX GPUs as a good starting point in the NVIDIA range, adding in more GPUs if budget allows if you’re also going to be rendering.

If you are considering a dedicated workstation for Maya then we recommend consumer-grade NVIDIA GeForce RTX cards thanks to their outstanding value for money. However, if you’re also planning on modelling on the same workstation then it’s worth considering a professional-grade NVIDIA RTX GPU thanks to their larger memory buffer and certified drivers.

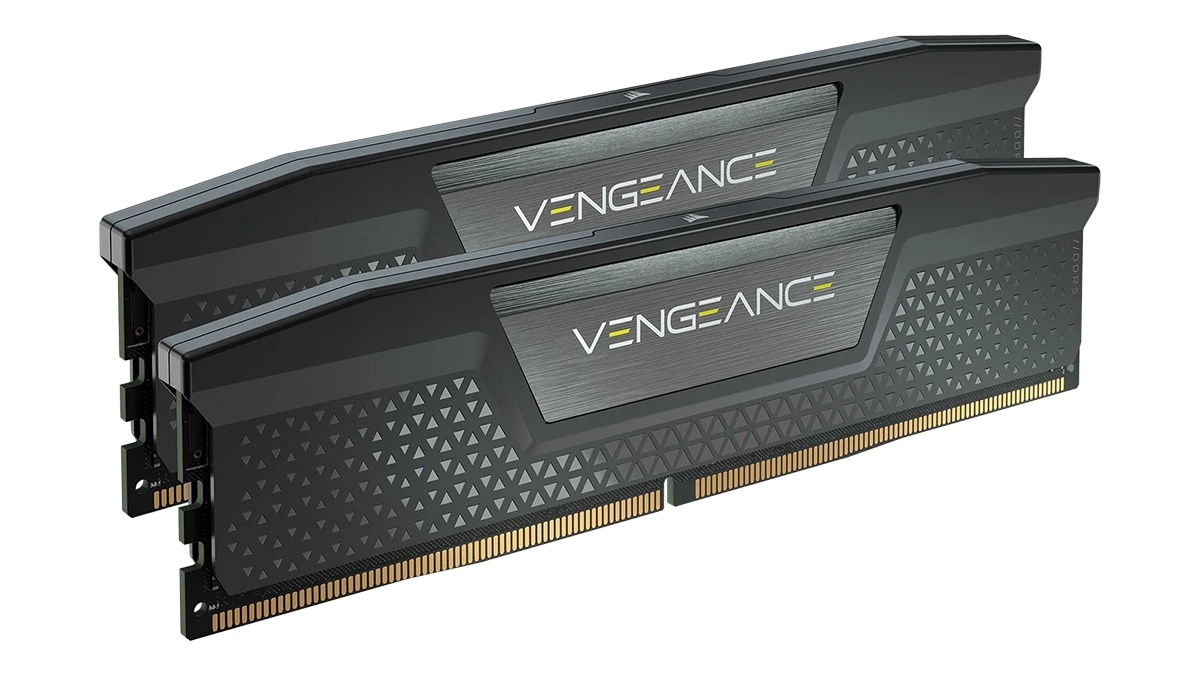

How much RAM is recommended for Maya?

The minimum RAM that we would recommend for Maya is 32GB, upgrading to more memory if you’re working with large projects or multiple applications at once.

What storage does Maya need?

We always recommend using an SSD for the boot drive that will host your OS, Maya itself, and any active projects you are working on. The high speed of SSDs allows your system to boot, launch applications, and load files many times faster than any traditional hard drive. Alternatively, as your work projects increase you may want to consider a second SSD or higher capacity HDD - depending on your budget - so your OS, Maya and live projects benefit from SSD speed, but your archived work uses the HDD where speed isn’t a necessity and costs can be lowered. Another archive solution could be to employ an external NAS device allowing sharing and RAID protection.

When it comes to deciding on drive capacity, this will very much depend on your number of files and the model sizes. You should also consider the space required by other applications and their associated files too.

Recommended Maya Workstation Specifications

Workstation specifications
	High-End	Mid-Range	Entry-Level
CPU	AMD Threadripper PRO / Intel Xeon W	AMD Ryzen 9 / Intel Core Ultra 9	AMD Ryzen 7 / Intel Core Ultra 7
RAM	128GB	64GB	32GB
GPU	Up to four NVIDIA RTX	NVIDIA RTX	NVIDIA RTX
